E Waste PCB Circuit Board Recycling Machine

E waste PCB circuit board recycling machine is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials. Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

Circuit Board Recycling Plant
Product Videos
Application
Application E waste PCB circuit board recycling machine
Final Products
  • Resin fibre
  • Metal powder
  • Waste PCB
  • Waste PCB
  • Waste PCB
  • Waste PCB
Products Strucure

The E waste PCB circuit board recycling machine consists of shredding system, milling system, sorting system and dust collection system. The whole process is controlled by PLC. Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.

PCB Products Strucure
Process Description

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator .It has the advantages of unique structure, large output and power saving. Several machines cooperation work after single loading of materials. Controlled by PLC This machine has good performance in copper recycling and comes with a device to prevent against secondary pollution The metal recycling rate is up to 99% which is the only in china.

PCB Process Description
Design Solutions Service
Design Solutions Service

According To Your Materials, Output, Recycled Products And Budget!

Product Features

1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;

2. PLC system makes it easier to control the whole line, the negative pressure feeding system prevent the dust from running out;

3. Feedback system makes the grind much more effective;

4. The separation rate of air separator can reach 97% and the separation rate of pulse dust cleaning device can reach 99%;

5. Electrostatic separator makes higher and quicker separation, moreover gets more non-ferrous metal;

6. With the magnetic separator ,the iron can be separated from other metals.

Technical Parameters
Model Capacity Power Dimension L/W/H Weight
ZY-PCB 300 200-300 Kg/H 102 Kw 20*5*5 m 15 Ton
ZY-PCB 500 400-500 Kg/H 134 Kw 25*6*5 m 20 Ton
ZY-PCB 800 600-800 Kg/H 194 Kw 30*6*5 m 30 Ton
ZY-PCB 1000 800-1000 Kg/H 238 Kw 35*8*5 m 40 Ton
Note:

1. The above machine is our standard configuratoin, but for different raw materials, it is different machine configuration, so please contact us about your raw materials;

2. The machine voltage can be customized.

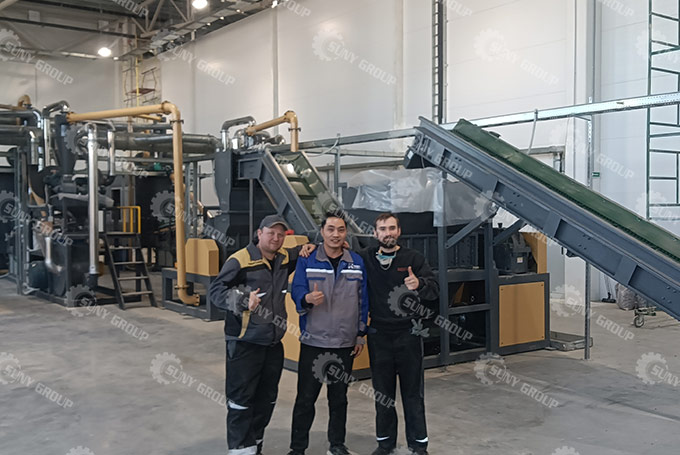

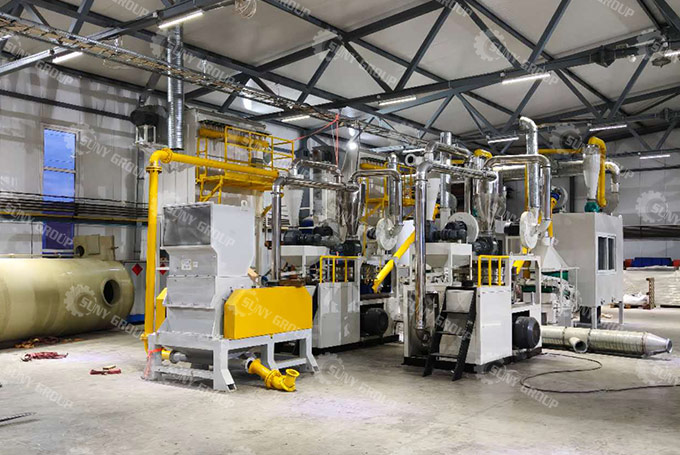

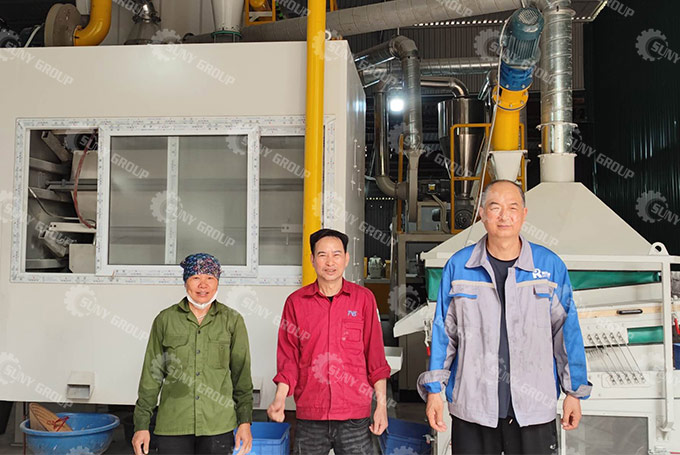

Customer Worksite
