Cable Granulator Copper Wire Recycling Machine
Cable wire recycling plant

Cable Granulator Copper Wire Recycling Machine ( also named Cable Wire Granulator ) is a kind of machinery used for recycling waste & scrap copper wire and cables to get copper particles and plastic particles, Cable wire recycling machine is featured with novel design, compact structure, low power consumption and stable performance.

Our Cable Granulator Copper Wire Recycling Machine are mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into tiny copper rice and PVC, the applicable range of the wires diameter from 0.3 mm to 20 mm, such as automobile wires, car bottom wires, motorcycle wires, computer wires and communication cable, etc.

Hot Sale Product
Mini cable wire recycling machine
Small Capacity Cable Wire Granulator
Capacity:30-50Kg/H, Low investment, small footprint, and easy operation.
Model ZYTMJ-50
Power3.9Kw
Voltage110V/220V(Can be customized)
Wire diameter range≤25mm
Weight240 Kg
Dimension5600*850*1530mm (Customized)
Product Videos
Application
  • Application of Cable wire recycling plant
  • Application of Cable wire recycling plant
Reycled Copper Wire
Final products of Cable wire recycling plant
  • Copper particles

  • Plastic particles

  • Copper particles

  • Plastic particles

Process Description

For the small capacity, the cable wire raw material can be put into the all-in-one machine directly, after crushing, then the air separtor will make the copper and plastic suspended on the screen. Then the Copper will be separated from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

For larger capacity, the cable wire raw material will be firstly put into the shredder, then go into crusher to get the small pieces wires, then the air separator will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. The Cable Granulator Copper Wire Recycling Machine including the crushing system, air separator system, dust and fiber collection system and high voltage electrostatic separator.

Cable wire recycling plant process

The dust collection system covers the entire recovery process. No dust outlet, the separation rate can reach up to 99%

Why Choose Us
  • Pulse dust collector

    Dust removal efficiency is more better than cloth bag dust collector

  • Anti-splash inlet

    The feeding port is enlarged and widened, and has anti-sputter function

  • Shredder blade: SKD Ⅱ

    The shredder blade material is SKD Ⅱ, wear resistance, long service life

  • Thickening screen

    Thickening screen and increase the service life and wear resistance

  • Bidirectional air trap

    Materials are transported by wind in a closed environment

  • Customizable voltage

    The voltage can be customized according to customer requirements

  • 20mm structural steel plate

    The machine base USES thickened channel steel to make the base more solid

  • PLC control

    Use PLC control, more intelligent, easier operation

Product Features

1.Compact structure and reasonable layout, safe and reliable, easy to install.

2.Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.

3.The shredding machine adopts the high hardness main shaft, make it has more impact power when crushing materials. It is composed of micro cutting head and cylindrical tool rod, greatly reduces the wearing (blades).

4.The crusher, air separator and the pulse dust collector installed together, so the structure of the machine is easy to move and transport.

5.The second crusher adopts alternate blades leading to high productivity, low noise and stable running.

6.This cable granulator copper wire recycling machine use the air separator and the high voltage electrostatic separator together.

7.Back feeding system will crush the unfinished material again, which guarantee the totally separation of copper and plastic.

8.The blade and screen adopts special wear resistance and high toughness alloy material, which improve the service life and reduce the production cost.

Technical Parameters
Model Capacity Power Dimension L/W/H Weight
ZY-TMJ 200 100-200 Kg/H 28 Kw 2.2*2*2.3 m 1850 Kg
ZY-TMJ 300 200-300 Kg/H 39 Kw 3.2*2.1*2.3 m 2500 Kg
ZY-TMJ 400 300-400 Kg/H 45 Kw 4*2.1*2.5 m 3200 Kg
ZY-TMJ 500 400-500 Kg/H 68 Kw 6.2*5*3.3 m 3850 Kg
ZY-TMJ 800 500-800 Kg/H 75 Kw 10.4*2.1*3.3 m 5500 Kg
ZY-TMJ 1000 800-1000 Kg/H 95 Kw 12*4.1*4.5 m 8200 Kg
Note:

1. The above machine is our standard configuratoin, but for different raw materials, it is different machine configuration, so please contact us about your raw materials;

2. The machine voltage can be customized.

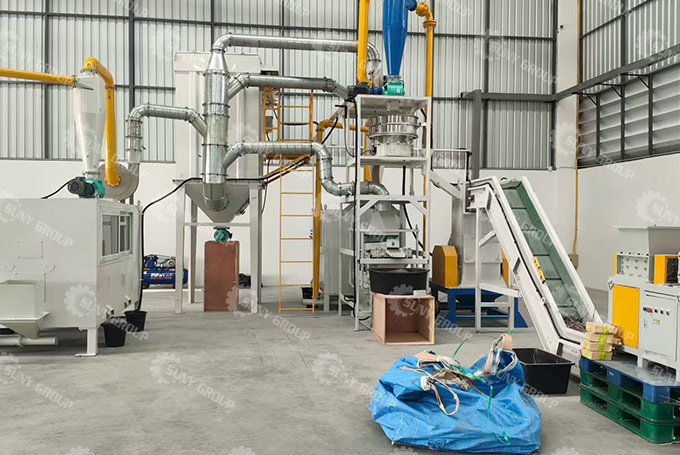

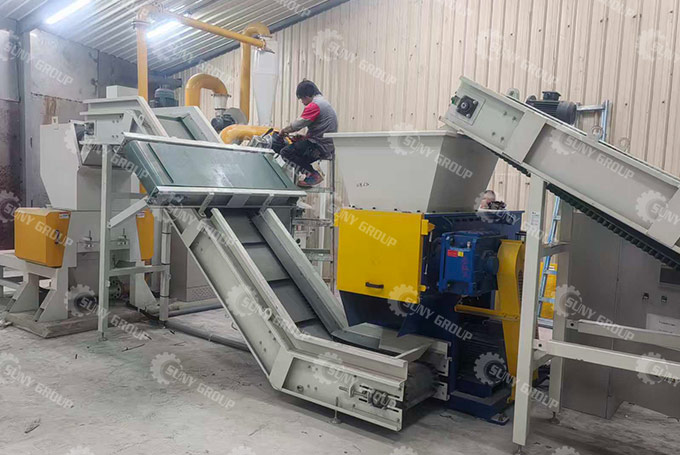

Customer Worksite
